Drainage Composites - Draintube

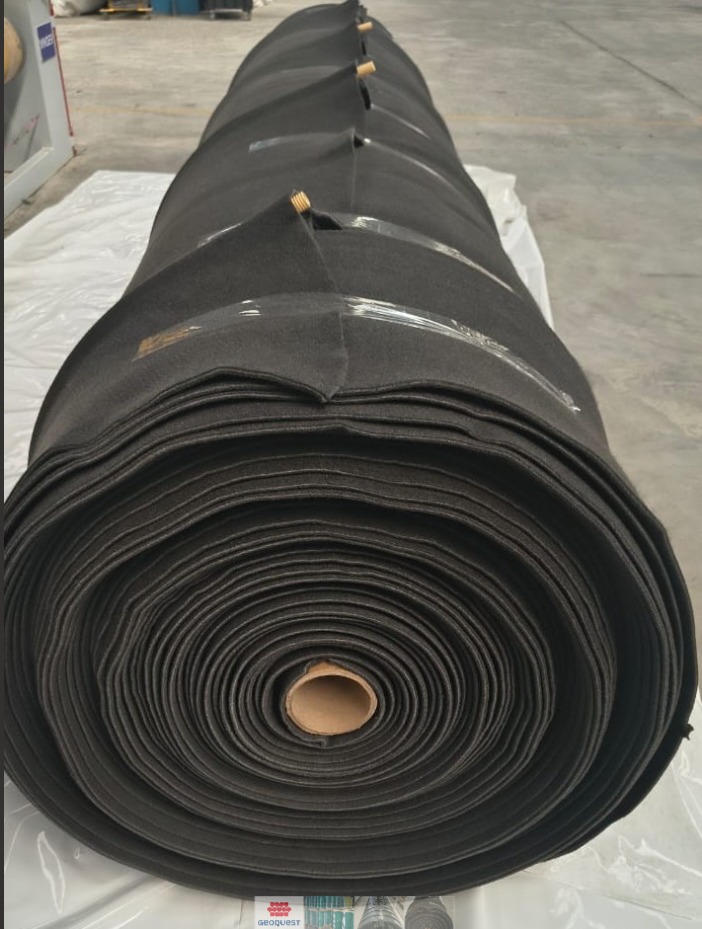

Draintube is a prefabricated drainage geocomposite designed with perforated mini pipes integrated between layers of polypropylene geotextiles. It is available with mini pipe diameters of 16 mm, 20 mm and 25 mm, in a width of 3.9 m and roll lengths ranging from 50 m to 100 m.

Draintube is designed to collect and drain water in civil engineering and environmental applications. Its structure offers advantages over conventional geocomposite drainage systems, including reduced risk of geotextile intrusion, creep and peel adhesion issues, supporting long-term performance under demanding conditions.

Each roll performs three important functions: separation, filtration and drainage. Draintube is available in a range of 300 gsm to 1200 gsm, depending on the required application and performance characteristics.

Product Applications:

• Subsurface drainage
• Civil engineering drainage
• Environmental engineering
• Water collection and drainage
• Soil drainage
• Separation and filtration
• Geotechnical drainage systems
• Infrastructure projects
