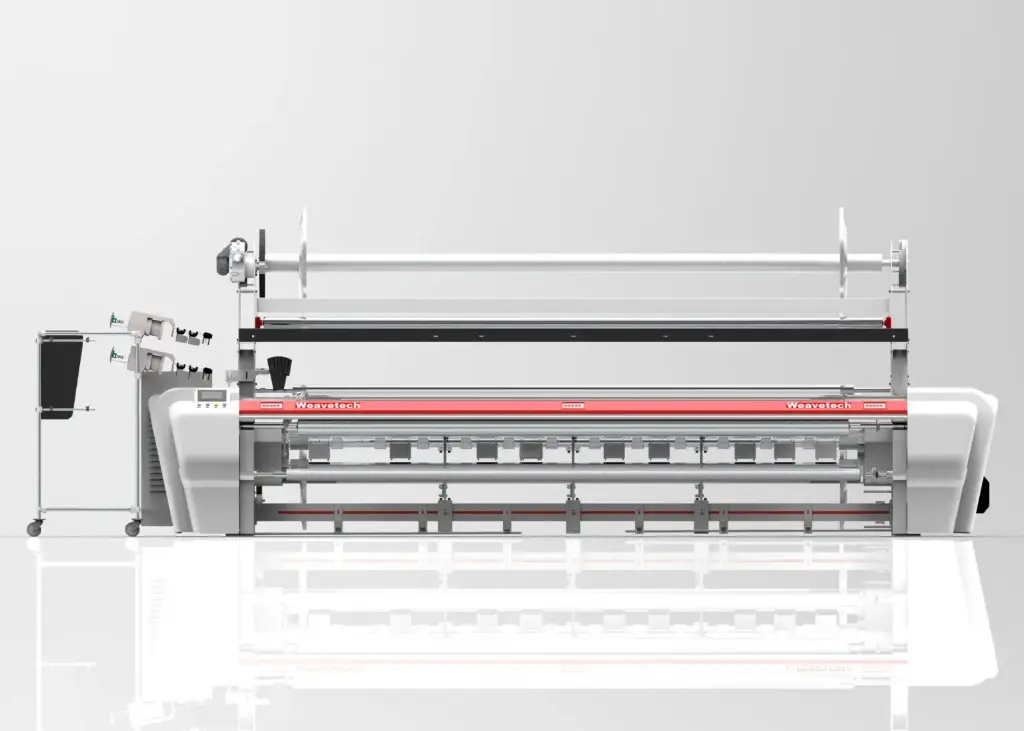

RAPIER LOOMS – R6100 SERIES

The R6100 Series is a high-speed CAM-driven rapier loom featuring guideless “Free-Flight” rapier gripper technology. It is designed for productive and cost-effective weaving across a wide range of fabric applications. The machine is available in widths from 170 cm to 380 cm and can operate with electronic dobby or electronic jacquard shedding systems.

The R6100 is particularly suitable for wider-width fabrics used in garments, furnishing and technical textiles. Its guideless rapier technology also allows processing of delicate warp yarns such as fine-denier silk and rayon. The machine supports single- and double-beam configurations, electronic weft control and electronic cutting systems.

Technical Specifications:

Specification Brochure Details

Rapier Drive Guideless "Free-Flight" Rapier Gripper

Loom Speed 170 cm @ 500 RPM

190 cm @ 400 RPM

280 cm @ 325 RPM

380 cm @ 250 RPM

Widths 170, 190, 230, 280, 320, 380 cm

Shedding Electronic Dobby / Electronic Jacquard

Beam Single / Double

Weft Control Max. 8 Colors, Electronic Selector

Cutters Electronic Roto Cutter / Electronic Selvedge Cutter

Beam Control Electronic Let Off & Electronic Take-Up

Features Cramming, Variable Pick Density, Direct Drive optional

Models R6100

Applications

Technical textiles

Garment fabrics

Furnishing fabrics

Wide-width fabrics

Jacquard fabrics

Dobby fabrics

Delicate warp fabrics
