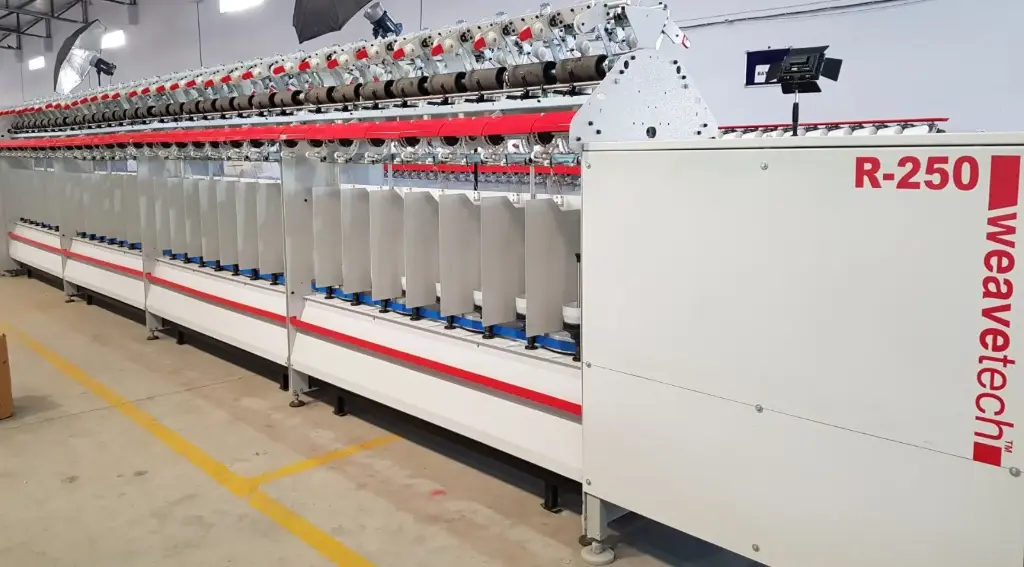

TFO TWISTER – R SERIES

The R-Series is a TFO twisting machine designed specifically for low-TPM and binding twisting of high-tenacity filament yarns. It processes polyester and nylon filament yarns and prepares them for use as workable warp and weft yarns.

With a maximum take-up speed of up to 120 metres per minute and spindle speed of up to 11,000 RPM, the R-Series supports yarn packages up to 3.0 kg knotless. It is particularly suitable for high-tenacity yarns used in technical and functional fabrics, sewing threads and twines. The machine incorporates individual bi-conical tapering, edge breaking and anti-patterning for controlled yarn package formation.

Specification Brochure Details

Machine Type TFO Twister

Application Low / Binding Twists to HT Filament Yarns

Take-up Speed Up to 120 m/min

Spindle Speed Up to 11,000 RPM

Yarn Type Polyester & Nylon

Feed / Take-up Up to 3.0 kg

Take-up Type Parallel Tube, 170–230 mm

Yarn Range 20–840 denier

Twist Range 80–1,600 TPM

Spindle Range 80, 90, 110, 125, 145 mm

Traverse Individual Bi-Conical Tapering, Edge Breaking & Anti-Patterning

Models R-250, R-330

Technical fabrics

Functional fabrics

High-tenacity yarns

Sewing threads

Twines

Warp yarn preparation

Weft yarn preparation
