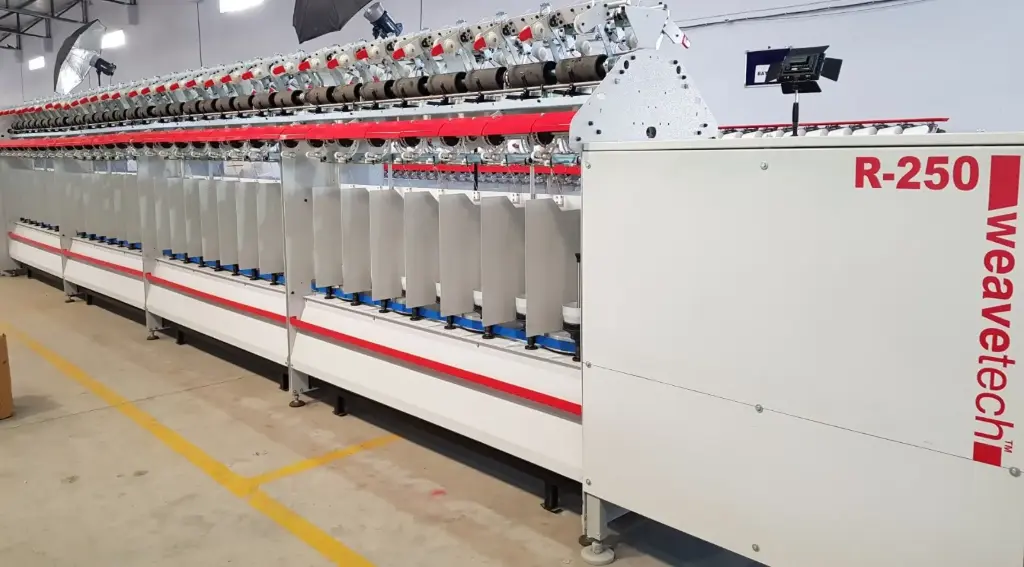

TFO TWISTER – R SERIES
品牌:
WEAVETECH ENGINEERS LIMITED
R-Series TFO Twisters are designed for low/binding twist processing of high-tenacity polyester and nylon filament yarns to make them suitable for warp and weft applications. The machines are suitable for technical and functional fabrics, sewing threads and twines.
最小訂購量
1.0
件
代碼
TFO TWISTER – R SERIES
交貨時間
2- 30 days (Based on Vendor Stock: To be confirmed based on machine configuration, and customization.)
出口能力
Yes
包裝格式
Export quality products supplied in standard packaging formats, delivered through certified shipping containers.
Weight per Unit(Kg)
Not Specific
詳細描述
The R-Series is a TFO twisting machine designed specifically for low-TPM and binding twisting of high-tenacity filament yarns. It processes polyester and nylon filament yarns and prepares them for use as workable warp and weft yarns.
With a maximum take-up speed of up to 120 metres per minute and spindle speed of up to 11,000 RPM, the R-Series supports yarn packages up to 3.0 kg knotless. It is particularly suitable for high-tenacity yarns used in technical and functional fabrics, sewing threads and twines. The machine incorporates individual bi-conical tapering, edge breaking and anti-patterning for controlled yarn package formation.
Technical Specifications:
Specification Brochure Details
Machine Type TFO Twister
Application Low / Binding Twists to HT Filament Yarns
Take-up Speed Up to 120 m/min
Spindle Speed Up to 11,000 RPM
Yarn Type Polyester & Nylon
Feed / Take-up Up to 3.0 kg
Take-up Type Parallel Tube, 170–230 mm
Yarn Range 20–840 denier
Twist Range 80–1,600 TPM
Spindle Range 80, 90, 110, 125, 145 mm
Traverse Individual Bi-Conical Tapering, Edge Breaking & Anti-Patterning
Models R-250, R-330
Applications:
Technical fabrics
Functional fabrics
High-tenacity yarns
Sewing threads
Twines
Warp yarn preparation
Weft yarn preparation
Export quality products supplied in standard packaging formats, delivered through certified shipping containers.
